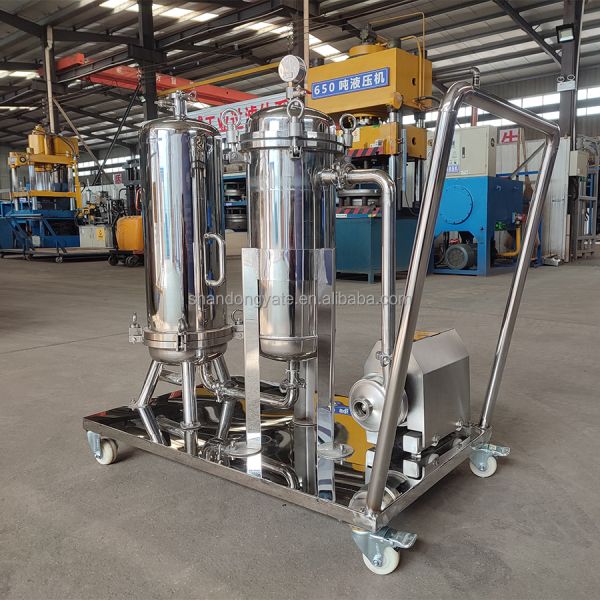

SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）

Brand Name : YATE

Certification : ISO9001,CE

Place of Origin : Shandong, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 30 set/sets per day

Delivery Time : 7 days

Packaging Details : Wooden case

Weight : 150 kg

Material : Stainless Steel 304/316

Working Pressure : 16 bar

Filtration Precision : 0.5-200 μm

Filter Bag Material : PP/PE/PTFE/SS

Cylinder Diameter : φ219-φ1300mm

Internal Filter Bag Size : 180*430/180*810/105*230/150*380/150*560mm

Inlet Connection : clamp quick connection/flange/thread

Design Pressure : 0.8-1.6Mpa

Design Temperature : 0℃-150℃

Sealing Ring Material : food grade silicone/fluorine rubber/EPDM/nitrile rubber

Surface Treatment : food grade internal and external polishing/internal grinding and external sandblasting

Filter Element Length : 10inch/20inch/30inch/40inch

Flow Rate : 0.5-2 tons (per filter element)

Applicable Industries : Beverage and Wine

Contact Now

Food Grade Stainless Steel Bag & Cartridge Filter Housing Machine
Premium Filtration Solutions for Juice, Cider, Beer, Honey, Gelatin & Syrup
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）
Applications
Food & Beverage: Beer, wine, juice, soda, syrup, oral liquids, additives, oil filtration
Water Treatment: Urban water supply, industrial water, power plant condensate
Automotive: Electrophoretic paint, varnishes, topcoats filtration
Electronics: Lithium battery coolant filtration
Metal Processing: Cutting fluid, coolant, lubricating oil filtration
Fine Chemicals: Catalysts, cosmetics raw materials, chemical auxiliaries
Petrochemical: Aviation kerosene, diesel, fuel, graphene, ink filtration
Core Advantages
Excellent Filtration Efficiency: Precision filter elements capture micron-sized particles for high purity output.
Energy Efficient Design: Optimized fluid channels reduce resistance and lower energy consumption.
Wide Compatibility: Processes water, oils, chemical solutions and various industrial liquids.
Easy Maintenance: Detachable structure simplifies cleaning and filter replacement.
Food-Grade Safety: 304/316 stainless steel construction meets GMP/FDA standards.
Technical Specifications
Bag Filter System
Parameter Specification
Cylinder Diameter φ219-φ1300mm
Material 304/316/2205 Stainless Steel
Filter Bag Size 180*430mm to 150*560mm
Filtration Accuracy 0.2-200 microns
Connection Type Clamp, Flange, Thread
Design Pressure 0.8-1.6Mpa
Temperature Range 70°C-150°C
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）
Cartridge Filter System
Parameter Specification
Cylinder Diameter φ102-φ350mm
Filter Element Size 10-40 inch
Filtration Accuracy 0.1-100 microns
Flow Rate (per 10") 0.5 ton (water equivalent)
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）
Filter Material Compatibility
Material Acids Bases Oils Solvents
Polyester (PE) Weak ✓ ✓
Polypropylene (PP) ✓ ✓ ✓ ✓
Nylon (NMO) ✓ ✓ ✓
Teflon (PTFE) ✓ ✓ ✓ ✓
Customizable Filtration Systems
Our YATE brand offers complete filtration solutions with modular components:
  • Single or multi-bag filter systems (1-24 bags)
  • Cartridge filter housings with pleated elements
  • Integrated pump and trolley systems
  • Material options: 304, 316, 2205 stainless steel
  • Surface finishes: Polished or sandblasted
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）

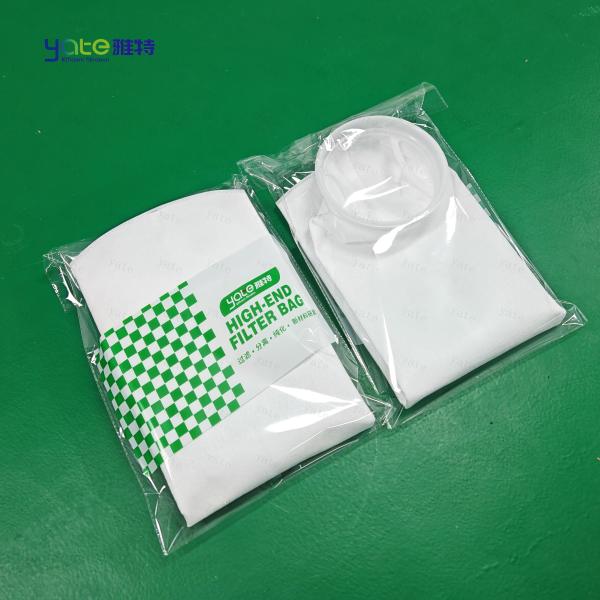

Filter Bag Options
Available in various materials and specifications:
  • Materials: PP, PE, Nylon, PTFE, Oil-absorbent
  • Accuracy: 0.2-200 micron options
  • Rings: Stainless steel or plastic

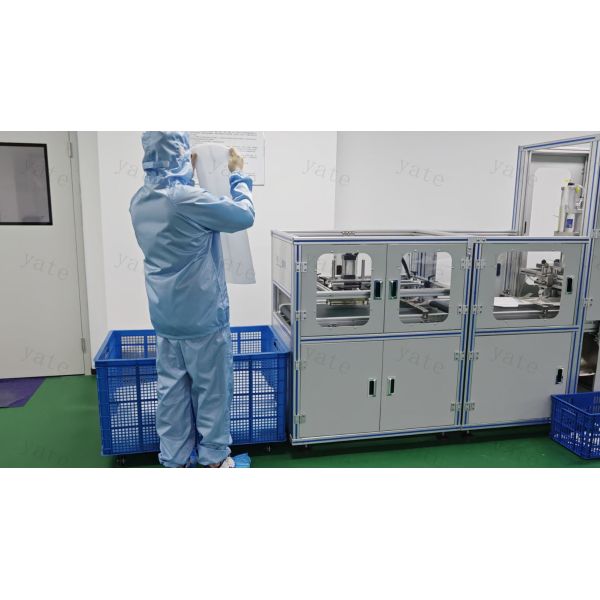

  • Production: Manufactured in sterile, food-grade facilities
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）
Professional Engineering Support
Our team provides comprehensive services including:
  • Custom system design and engineering drawings
  • Precise flow rate calculations
  • Installation guidance and technical support
  • 12 years of filtration expertise
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）

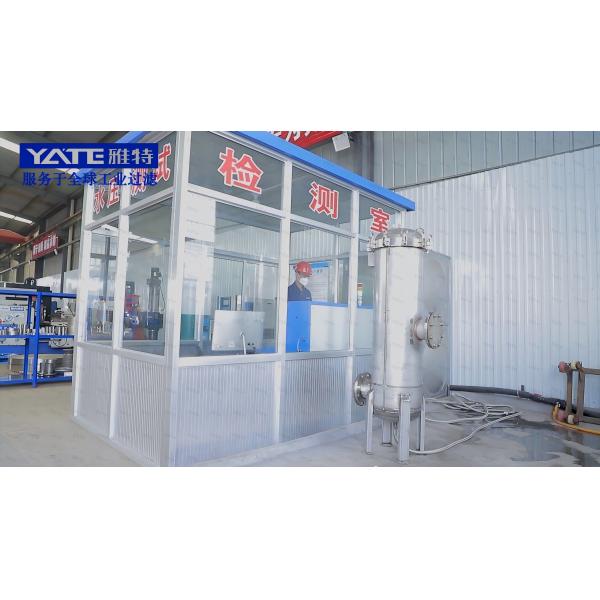

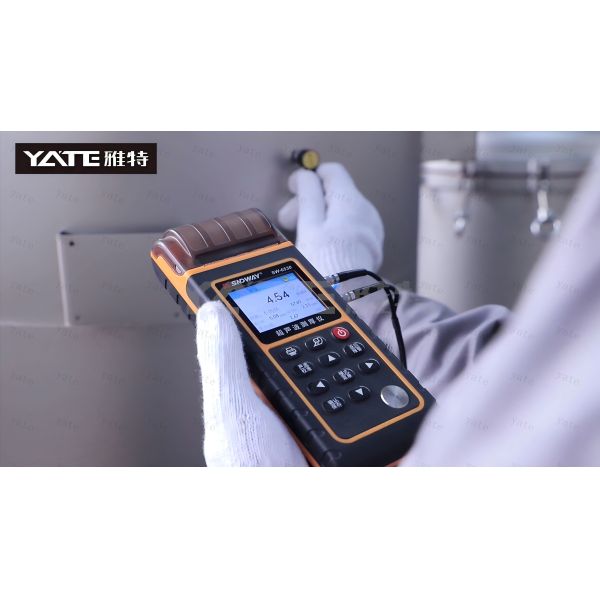

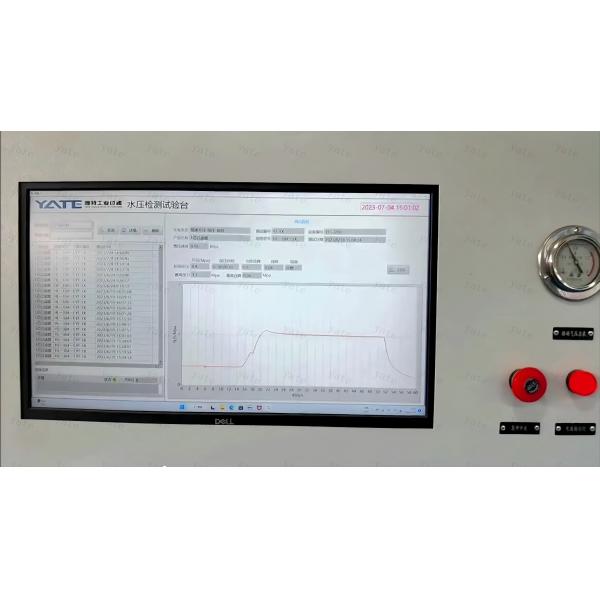

Quality Assurance

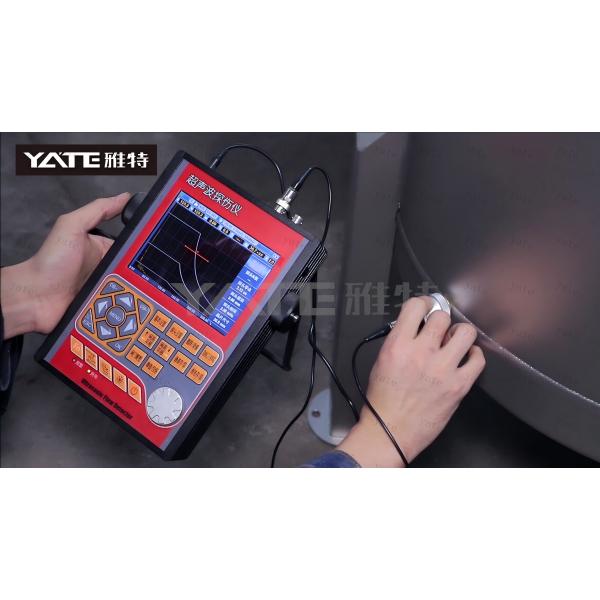

Our manufacturing facilities utilize advanced testing equipment:
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）
Company Certifications
SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley） SS304/316L Food Grade Single Bag Filter for Beverage and Wine Processing（with trolley）
